主要特性和優勢
- 一個晶體管和兩個電阻集成在一個封裝中
- 降低處理和庫存成本
- 廣泛的100 mA產品范圍
- 減少電路板空間
- 500 mA產品組合
- 縮短裝配時間
- 采用SOT363/457封裝的完整雙RET系列
- 簡化設計流程
- 符合AEC-Q101標準
- 減少焊點，提升系統可靠性
關鍵應用
- 數字應用
- 儀表盤
- 發動機控制單元
參數搜索
RETs 500 mA single/double
數據加載中，請稍候...參數搜索不可用。
產品
| 型號 | 描述 | 狀態 | 快速訪問 |
|---|---|---|---|
| PDTB1xxxU series | 500 mA, 50 V PNP resistor-equipped transistors | ACT |
|
| PDTB113EU | 50 V, 500 mA PNP resistor-equipped transistor | Production | |
| PDTB123EU | 50 V, 500 mA PNP resistor-equipped transistor | Production | |
| PDTB143EU | 50 V, 500 mA PNP resistor-equipped transistor | Production | |
| PDTB143XU | 50 V, 500 mA PNP resistor-equipped transistor | Production | |
| PDTD1xxxT series | 500 mA, 50 V NPN resistor-equipped transistors | ACT |
|
| PDTD114ET-Q | 50 V, 500 mA NPN resistor-equipped transistor; R1?=?10?kΩ,?R2?=?10?kΩ | Production | |
| PDTD143ET-Q | 500 mA, 50 V NPN resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?4.7?kΩ | Production | |
| PDTD143XT | 50 V, 500 mA NPN resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?10?kΩ | Production | |
| PDTD1xxxU series | 500 mA, 50 V NPN resistor-equipped transistors | ACT |
|
| PDTD113EU | 50 V, 500 mA NPN resistor-equipped transistor | Production | |
| PDTD113ZU | 50 V, 500 mA NPN resistor-equipped transistor | Production | |
| PDTD114EU-Q | 50 V, 500 mA NPN resistor-equipped transistor | Production | |
| PDTD123EU-Q | 50 V, 500 mA NPN resistor-equipped transistor | Production | |
| PDTD123YU | 50 V, 500 mA NPN resistor-equipped transistor | Production | |
| PDTD143EU-Q | 50 V, 500 mA NPN resistor-equipped transistor; R1 = 4.7 kΩ, R2 = 4.7 kΩ | Production | |
| PDTD143XU | 50 V, 500 mA NPN resistor-equipped transistor | Production | |
| PDTB113EQA | 50 V, 500 mA PNP resistor-equipped transistors | Production | |
| PDTB113ZQA | 50 V, 500 mA PNP resistor-equipped transistors | Production | |
| PDTB114EQA | 50 V, 500 mA PNP resistor-equipped transistors | Production | |
| PDTB114ET | 50 V, 500 mA PNP resistor-equipped transistor | Production | |
| PDTB114EU-Q | 50 V, 500 mA PNP resistor-equipped transistor | Production | |
| PDTB123EQA | 50 V, 500 mA PNP resistor-equipped transistors | Production | |
| PDTB123YQA | 50 V, 500 mA PNP resistor-equipped transistors | Production | |
| PDTB123YU-Q | 50 V, 500 mA PNP resistor-equipped transistor | Production | |
| PDTB143EQA | 50 V, 500 mA PNP resistor-equipped transistors | Production | |
| PDTB143ET-Q | 50 V, 500 mA PNP resistor-equipped transistor | Production | |
| PDTB143XQA | 50 V, 500 mA PNP resistor-equipped transistors | Production | |
| PDTB143XT | 50 V, 500 mA PNP resistor-equipped transistor | Production | |
| PDTD113ET-Q | 50 V, 500 mA NPN resistor-equipped transistor; R1?=?1 k?,?R2?=?1?k? | Production | |
| PDTD113ZT-Q | NPN 500 mA, 50 V resistor-equipped transistor; R1?=?1?kΩ,?R2?=?10?kΩ | Production | |
| PDTD123ET-Q | 50 V, 500 mA NPN resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 2.2 kΩ | Production | |
| PDTD123TT | NPN 500 mA, 50 V resistor-equipped transistors; R1 = 2.2 kOhm, R2 = open | Production | |
| PDTD123YK | NPN 500 mA, 50 V resistor-equipped transistors; R1 = 2.2 kOhm, R2 = 10 kOhm | EndOfLife | |
| PDTD123YT-Q | 50 V, 500 mA NPN resistor-equipped transistor; R1?=?2.2?kΩ,?R2?=?10?kΩ | Production | |
| PIMC31-Q | 500 mA, 50 V NPN/PNP double resistor-equipped transistor; R1 = 1 k?, R2 = 10 k? | Production | |
| PIMC31PAS-Q | 50 V, 500 mA NPN/PNP Resistor-Equipped double Transistor; R1?= 1?kΩ,?R2?=?10 kΩ | Production | |
| PIMC32-Q | 50 V, 500 mA NPN/PNP Resistor-Equipped double Transistor (RET); R1?=?2.2?kΩ,?R2?=?10?kΩ | Production | |
| PIMC32PAS-Q | 50 V, 500 mA NPN/PNP Resistor-Equipped double Transistor; R1?= 2.2?kΩ,?R2?=?10 kΩ | Production | |
| PIMN31 | 500 mA, 50 V NPN/NPN double resistor-equipped transistor; R1 = 1 kOhm, R2 = 10 kOhm | Production | |
| PIMN31PAS-Q | 50 V, 500 mA NPN/NPN Resistor-Equipped double Transistor; R1?= 1?kΩ,?R2?=?10 kΩ | Production | |
| PIMN32-Q | 50 V, 500 mA NPN/NPN Resistor-Equipped double Transistor (RET); R1?=?2.2?kΩ,?R2?=?10?kΩ | Production | |
| PIMN32PAS-Q | 50 V, 500 mA NPN/NPN Resistor-Equipped double Transistor; R1?= 2.2?kΩ,?R2?=?10 kΩ | Production | |
| PIMP31-Q | 50 V, 500 mA PNP/PNP Resistor-Equipped double Transistor (RET); R1?=?1?kΩ,?R2?=?10?kΩ | Production | |
| PIMP31PAS-Q | 50 V, 500 mA PNP/PNP Resistor-Equipped double Transistor; R1?= 1?kΩ,?R2?=?10 kΩ | Production | |
| PIMP32-Q | 50 V, 500 mA PNP/PNP Resistor-Equipped double Transistor (RET); R1?=?2.2?kΩ,?R2?=?10?kΩ | Production | |
| PIMP32PAS-Q | 50 V, 500 mA PNP/PNP Resistor-Equipped double Transistor; R1?= 2.2?kΩ,?R2?=?10 kΩ | Production |
Visit our documentation center for all documentation
Marcom graphics (1) |
|||
|---|---|---|---|
| 文件名稱 | 標題 | 類型 | 日期 |

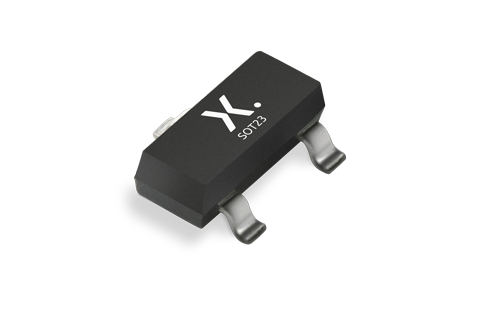

| SOT23_mk.png | plastic, surface-mounted package; 3 terminals; 1.9 mm pitch; 2.9 mm x 1.3 mm x 1 mm body | Marcom graphics | 2017-01-28 |
